Home Cylinders & Jacks Hollow Piston Cylinders COF Series
CMP Series
CMP Series
Back to products
COI Series
COI Series

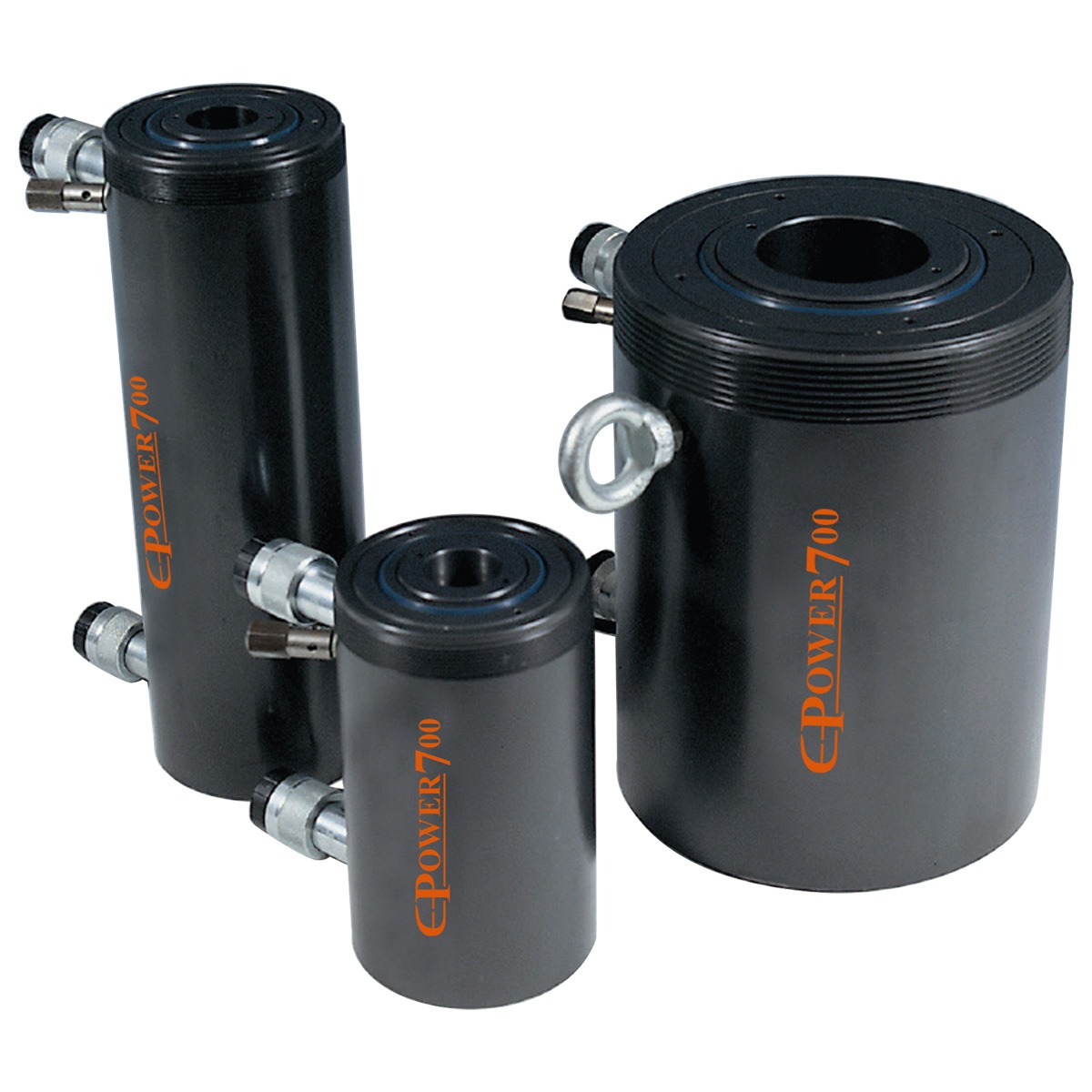

COF Series

  • Capacity
    30 – 200 tonnes
  • Stroke
    75 – 250 mm
  • Maximum Operating Pressure:
    700 bar (10,000 psi)
  • Repair Part Sheet
  • Specification Sheet
  • WhatsApp
  • Enquire Now
Categories: Cylinders & Jacks, Hollow Piston Cylinders
Share:
  • Description
Description

Key Features

  • Hollow Piston design permits both pull & push forces.
  • Operate in any directional position.
  • Collar threads & base mounting holes for model 30 to 100 tonnes provide easy fixturing.
  • Smooth hollow bore saddle screwed to rod bore to prevent any risk of rod deformation. Optional threaded saddle (ZTE) available for 30 & 60 tonnes models.
  • Wiper seal prevents dirt penetration & extends cylinder life.
  • Nitride-treated to resist wear, provides excellent corrosion resistance & protects the bore centre.
  • Double-acting operation for fast retraction.
  • A bar or cable can be inserted through the hollow saddle for both pull & push operations.
  • Suitable for pulling, tensioning, mounting & extracting pulleys, bearings, bushings, and heat exchanger pipes, etc.
