Home Pumps MD Series
Placeholder
G Series
Back to products
MLP Series
MLP Series

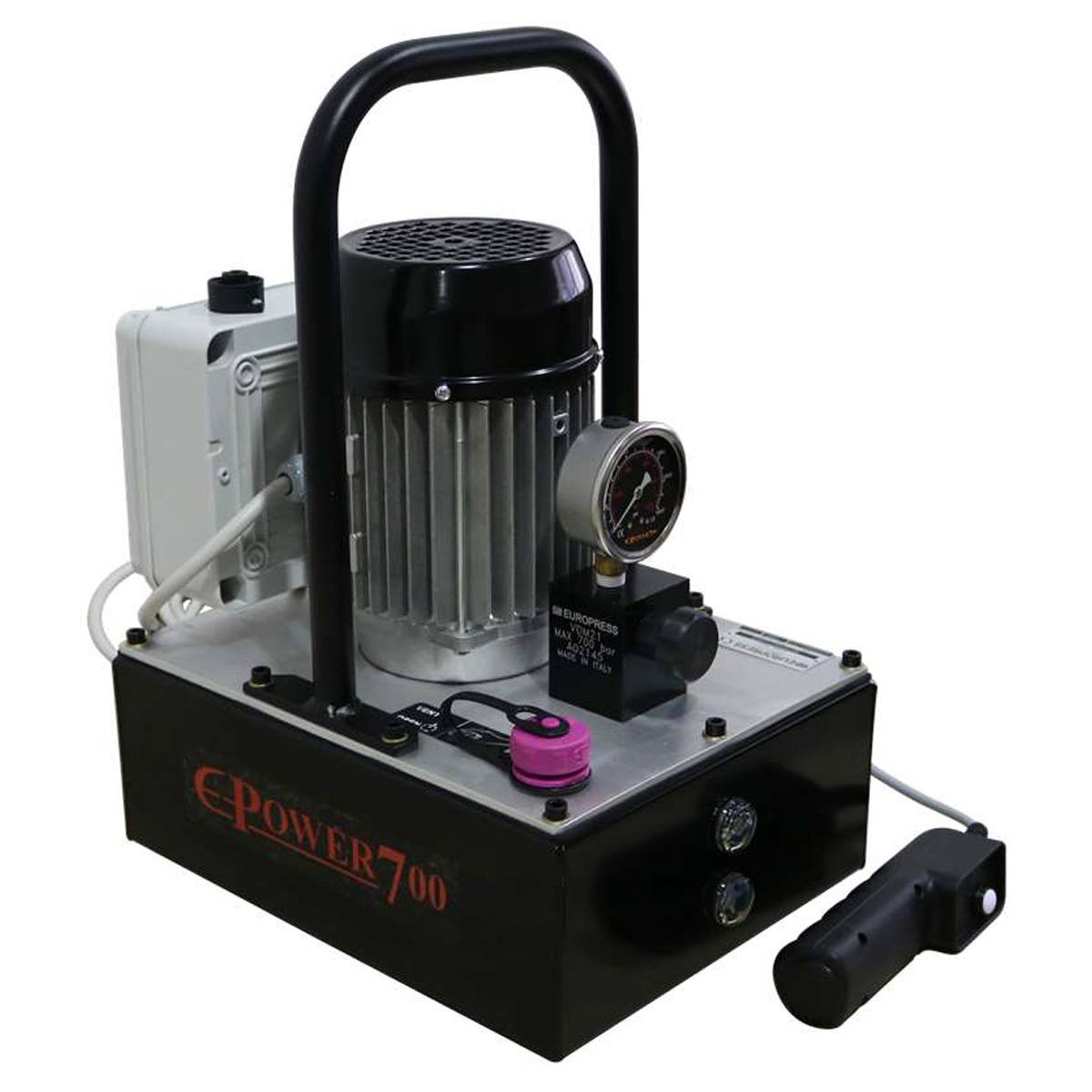

MD Series

  • Reservoir Capacity
    5 litres
  • Oil Delivery at Rated Pressure
    0,4 litre/min.
  • Electric Motor Size
    0,75 kW (1 hp)
  • Maximum Operating Pressure
    700 bar (10,000 psi)
  • Repair Part Sheet
  • Specification Sheet
  • WhatsApp
  • Enquire Now
Category: Pumps
Share:
  • Description
Description

Key Features

  • Designed for maintenance applications with maximum operating efficiency & performance.
  • Compact, lightweight & U-shaped carrying handle.
  • Quiet, easy to use and reliable.
  • Class IP54 enclosure protection.
  • Meet the European Safety Directives.

Equipped with:

  • Two-stage piston pump.
  • Totally enclosed fan-cooled (TEFC) induction motor, provides continuous duty cycle with magnetothermal cut-out to prevent overheating of motor.
  • Glycerine-filled pressure gauge, 63mm dial dia. (Scale: bar/psi; Accuracy: ± 1.6% full scale).
  • Manual control & safety relief valve.
  • 3m remote hand control pendant switch (24VAC).
  • Steel reservoir tank with oil level gauge.
